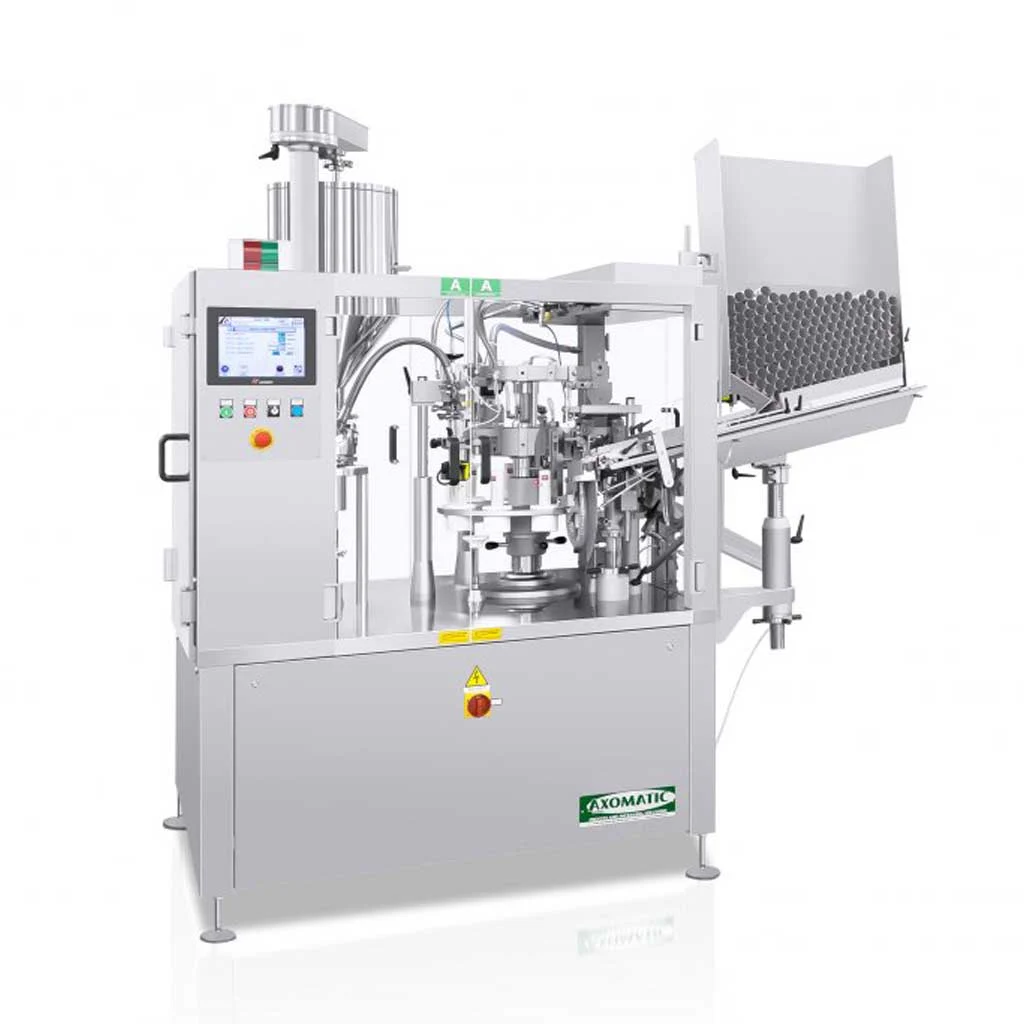

AXO 1000 Tube Filling Machine
Automatic tube filling machine for filling and closing of regular and irregular shaped plastic, laminate and aluminium tubes.
AXO 1000 Tube Filling Machine
Automatic tube filling machine for filling and closing of regular and irregular shaped plastic, laminate and aluminium tubes.
| Manufacturer: | Axomatic |
| Speed/Capacity: | Up to 5100 tubes/hour |
| Applications: | Pasty Products | Thick Emulsions |
Features:
- Maximum output 5100 pieces / hour
- Control panel touch screen with all the main functions
- Automatic tube loading from the tube magazine
- Automatic tube orientation
- Automatic filling with mechanical dosing system with dosage range between 3 and 250ml
- Diving nozzle for an accurate dosage of the bottom of the tube, adjustable stroke 130mm
- Mechanical jaw closing system for aluminium tubes, with simple, double or saddle fold
- Hot jaws for plastic, laminated and polyfoil tubes
- Hot air sealing system for plastic, laminated and polyfoil tubes
- Ultrasonic sealing system for plastic tubes
- Possibility of shaped sealing or custom shapes from drawings such as round edge, curved seal, wave seal etc.
- The AXO 1000 machine can work up to 60mm plastic tubes
